Rotary Damper Disk Damper For Wall Flip Chair

  • Rotary Damper Disk Damper For Wall Flip Chair
  • Rotary Damper Disk Damper For Wall Flip Chair
  • Rotary Damper Disk Damper For Wall Flip Chair
  • Rotary Damper Disk Damper For Wall Flip Chair

Rotary Damper Disk Damper For Wall Flip Chair

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: Standard export package
    Productivity: 1000000
    Brand: ABD
    Transportation: Ocean,Air
    Place of Origin: China
    Certificate: ISO9001:2015
    HS Code: 3926901000
    Port: Shenzhen

Basic Info

Model No.: DQ47A-R/L

Product Description


ABD disk dampers provide energy absorption and rotational deceleration. Steel body rotary disk damper for wall flip chairs soft close, infinite angle rotation, two-side or one-side damping. Our disk dampers are the perfect solution for a wide range of applications, from wall flip chairs, and auditorium seating to auto seats to. ABD Disk dampers are designed to control and smooth out the opening and closing of lids, and doors. This smooth deceleration provides and anti-slam function. When wall flip chairs rotary damper disk damper use in the chair, it will keep the chair close silently and slowly. ABD disk dampers are crucial for many products which require safety, high quality and durability solutions. ABD wall flip chairs disk dampers are easy to install.once installed, they are increasing equipment life and reducing maintenance expenses.

Welcome to purchase high quality and precise wall flip chairs disk dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of wall flip chairs disk dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.


Disk Damper for Theater Seat

NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 50r/min

3. Max. circle rate: 6 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4.Operating temperature: -10~50℃

5.Storage temperature:-30~80℃

Specifications



Part No. Applied Torque(T) (Kgf.cm ) A B C D E F G H R
DQ47A 502-203 5~20Kgf.cm 65 56 6 4.5 47 42.8 1.2 10.3 4.5
DQ51A 103-303 10~30Kgf.cm 72 62 8 5.5 51 47.1 1.2 10.3 5.5
DQ57A 203-503 20~50Kgf.cm 79 68 10 5.5 57 52.4 1.6 10.3 5.5
DQ63A 403-703 40~70Kgf.cm 89 76 10 6.5 63 58.6 1.6 10.3 6.5
DQ70A 603-104 60~100Kgf.cm 95 82 10 6.5 70 65.4 1.6 10.3 6.5

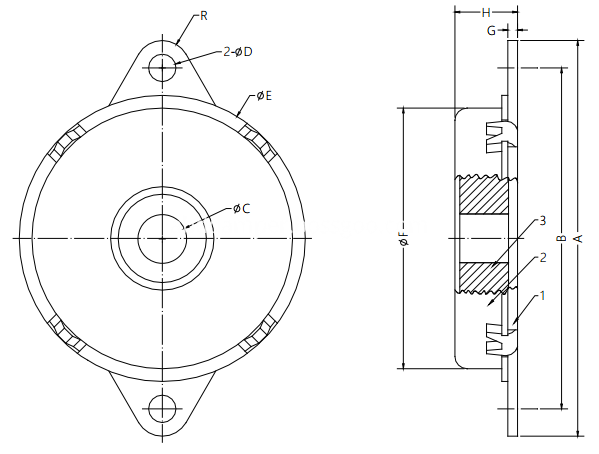

Drawings


Rotary Damper for Theater Seat



Damper for Theater Seat


The damper circular hole coordinates with the rotation axis dimension tolerance.


Materials



3 Shaft PA/POM
2 Cover SPFC
1 Shell SPFC
NO. Description Material


Damper Characteristics


Disk Damper Characteristics for Theater Seat

Applied torque:(T)

Test Temperature:23+/-5℃

Rotating speed:20r/min

Durability test Method:Clockwise 360 °, 360 °anti-clockwise

Rotating speed:20r/min

Test Frequency:(1cycle/min)

Test Temperature: 23±5℃

Durability test cycle: 50000 cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.


How to use the damper

1.Dampers may generate torque in both directions, clockwise, or counter-clockwise.

2.Please make sure that a shaft attached to a damper has a bearing, as the damper itself is not fitted with one.

3.please refer to the recommended dimensions below when creating a shaft for DQ47A-R/L. Not using the recommended shaft dimensions may cause the shaft to slip out.




Applications

Theater seats, auditorium seating, wall flip chairs, scanner, office equipment, furniture equipment, commercial equipment, auto seats, auto seat back plate, rotating mechanisms and many other cover plates, etc.



Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
